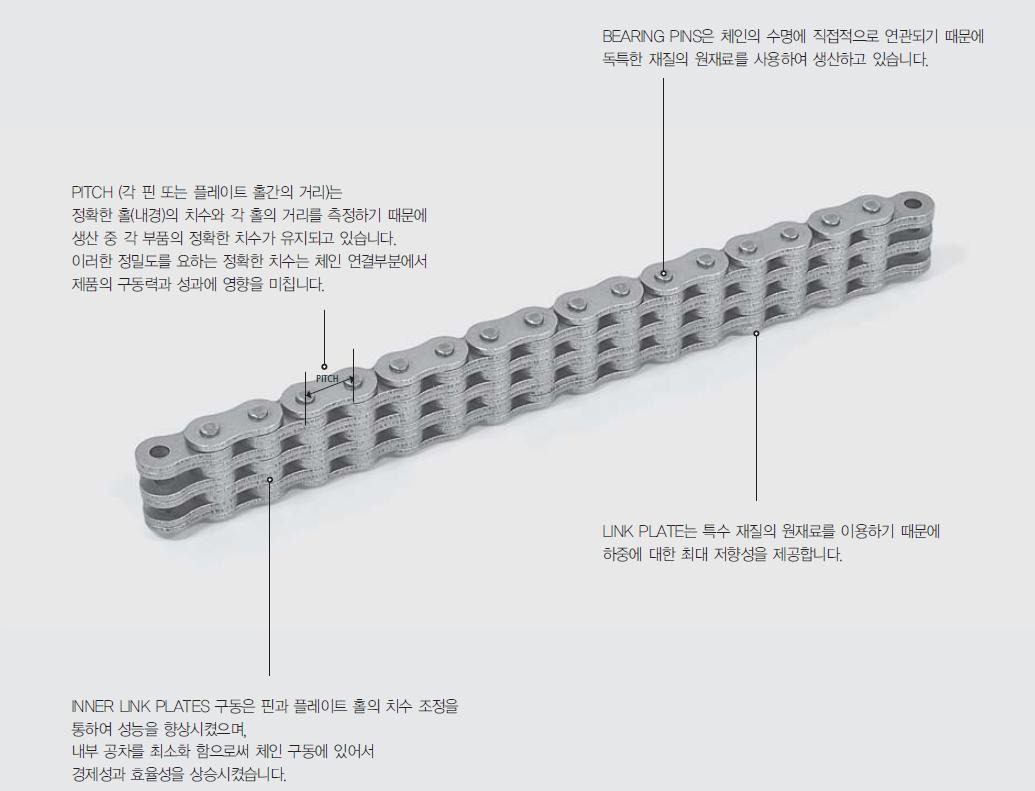

 ToolPark Korea  Leaf Chain

Chain No. 배열
Ladin		 Pitch
P		 Pin Plate Breaking Load(kgf) Approx
Weight
kg/m
D L T H S D.S A.N.S.I
MS AL-422 2X2 12.70 3.97 8.40 1.5 10.4 4.02 1,700 1,500 0.38
MS AL-444 4X4 12.70 3.97 14.85 1.5 10.4 4.02 3,400 3,000 0.74
MS AL-466 6X6 12.70 3.97 21.30 1.5 10.4 4.02 5,100 4,500 1.10
MS AL-522 2X2 15.875 5.08 10.85 2.0 13.0 5.13 2,800 2,500 0.62
MS AL-544 4X4 15.875 5.08 19.35 2.0 13.0 5.13 5,600 5,000 1.22
MS AL-566 6X6 15.875 5.08 27.80 2.0 13.0 5.13 8,400 7,600 1.81
MS AL-622 2X2 19.05 5.94 12.65 2.4 15.6 6.00 3,900 3,400 0.87
MS AL-644 4X4 19.05 5.94 22.55 2.4 15.6 6.00 7,800 6,900 1.71
MS AL-666 6X6 19.05 5.94 32.45 2.4 15.6 6.00 11,700 10,000 2.54
MS AL-822 2X2 25.40 7.90 16.35 3.2 20.8 7.97 6,600 6,000 1.51
MS AL-844 4X4 25.40 7.90 29.80 3.2 20.8 7.97 13,200 12,000 2.98
MS AL-866 6X6 25.40 7.90 43.20 3.2 20.8 7.97 19,900 17,900 4.44
MS AL-1022 2X2 31.75 9.48 20.05 4.0 26.0 9.57 10,000 8,700 2.69
MS AL-1044 4X4 31.75 9.48 36.70 4.0 26.0 9.57 20,000 17,500 5.31
MS AL-1066 6X6 31.75 9.48 53.30 4.0 26.0 9.57 30,000 26,300 7.93
MS AL-1222 2X2 38.10 11.04 24.20 4.8 31.2 11.14 14,000 12,400 3.57
MS AL-1244 4X4 38.10 11.04 44.00 4.8 31.2 11.14 28,800 24,900 7.07
MS AL-1266 6X6 38.10 11.04 63.85 4.8 31.2 11.14 43,200 37,400 10.56
MS AL-1444 4X4 44.45 12.64 51.30 5.6 36.4 12.74 38,000 31,400 10.34
MS AL-1466 6X6 44.45 12.64 74.55 5.6 36.4 12.74 57,000 47,200 15.16
MS AL-1644 4X4 50.80 14.21 58.05 6.4 41.6 14.32 48,000 39,700 12.98
MS AL-1666 6X6 50.80 14.21 84.45 6.4 41.6 14.32 72,000 59,600 19.41





스텐롤러체인

체인번호
Chain No.		 피치 로울러경 내폭 핀 플레이트 파단하중 개략중량
Pitch Roller
diameter		 Width
between
inner plates		 Pin
diameter		 Pin
length		 Inner
plate
depth		 piate
thick-
ness		 Ultimate
tensile
strength		 Weight
per
meter
p d1
max		 b1
min		 d2
max		 L
max		 Lc
max		 h2
max		 T
max		 Q
min		 q
mm mm mm mm mm mm mm mm kN kg/m
MS 25SS 6.350 3.30 3.18 2.31 7.90 8.40 6.00 0.75 2.5 0.15
MS 35SS 9.525 5.08 4.77 3.58 12.40 13.17 9.00 1.20 5.5 0.33
MS 41SS 12.700 7.77 6.25 3.58 13.75 15.00 9.91 1.20 6 0.41
MS 40SS 12.700 7.95 7.85 3.96 16.60 17.80 12.00 1.50 9.6 0.62
MS 50SS 15.875 10.16 9.40 5.08 20.70 22.20 15.09 2.00 15.2 1.02
MS 60SS 19.050 11.91 12.57 5.94 25.90 27.70 18.00 2.40 21.7 1.50
MS 80SS 25.400 15.88 15.75 7.92 32.70 35.00 24.00 3.00 38.9 2.60
MS 100SS 31.750 19.05 18.90 9.53 40.40 44.70 30.00 4.00 60 3.91
MS 120SS 38.100 22.23 25.22 11.10 50.30 54.30 35.70 4.80 88.9 5.62
MS 140SS 44.450 25.40 25.22 12.70 54.40 59.00 41.00 5.60 103.44 7.50
MS 160SS 50.800 28.58 31.55 14.27 64.80 69.60 47.80 6.40 136.08 10.10
MS 180SS 57.150 35.71 35.48 17.46 72.80 78.60 53.60 7.20 168.12 13.45
MS 200SS 63.500 39.68 37.85 19.85 80.30 87.20 60.00 8.00 212.28 16.15
MS 240SS 76.200 47.63 47.35 23.81 95.50 103.00 72.39 9.50 306.18 23.20



체인번호
Chain No.		 피치 로울러경 내폭 핀 플레이트 횡핏치 파단하중 중량
Pitch Roller
diameter		 Width
between
inner plates		 Pin
diameter		 Pin
length		 Inner
plate
depth		 piate
thick-
ness		 Transverse
pitch		 Ultimate
tensile
strength		 Weight
per
meter
p d1
max		 b1
min		 d2
max		 L
max		 Lc
max		 h2
max		 T
max		 Pt Q
min		 q
mm mm mm mm mm mm mm mm mm kN kg/m
MS 25SS-2 6.350 3.30 3.18 2.31 14.5 15.0 6.00 0.75 6.40 3.5 0.28
MS 35SS-2 9.525 5.08 4.77 3.58 22.5 23.3 9.00 1.20 10.13 7.9 0.63
MS 41SS-2 12.700 7.77 6.25 3.58 25.7 26.9 9.91 1.20 11.95 6.67 0.81
MS 40SS-2 12.700 7.95 7.85 3.96 31.0 32.2 12.00 1.50 14.38 14.1 1.12
MS 50SS-2 15.875 10.16 9.40 5.08 38.9 40.4 15.09 2.00 18.11 22.20 2.00
MS 60SS-2 19.050 11.91 12.57 5.94 48.8 50.5 18.00 2.40 22.78 31.80 2.92
MS 80SS-2 25.400 15.88 15.75 7.92 62.7 64.3 24.00 3.00 29.29 56.70 5.15
MS 100SS-2 31.750 19.05 18.90 9.53 76.4 80.5 30.00 4.00 35.76 88.50 7.80
MS 120SS-2 38.100 22.23 25.22 11.10 95.8 99.7 35.70 4.80 45.44 127.00 11.70
MS 140SS-2 44.450 25.40 25.22 12.70 103.3 107.9 41.00 5.60 48.87 172.40 15.14
MS 160SS-2 50.800 28.58 31.55 14.27 123.3 128.1 47.80 6.40 58.55 226.80 20.14
MS 180SS-2 57.150 35.71 35.48 17.46 138.6 144.4 53.60 7.20 65.84 280.25 29.22
MS 200SS-2 63.500 39.68 37.85 19.85 151.9 158.8 60.00 8.00 71.55 353.80 32.24
MS 240SS-2 76.200 47.63 47.35 23.81 183.4 190.8 72.39 9.50 87.83 510.30 45.23

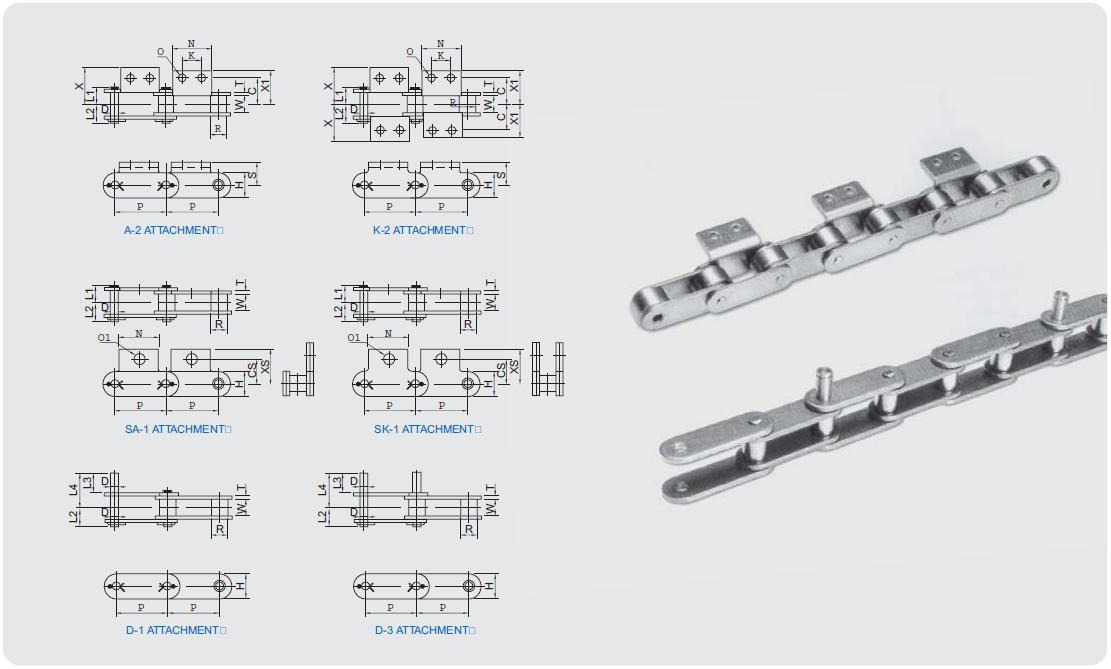

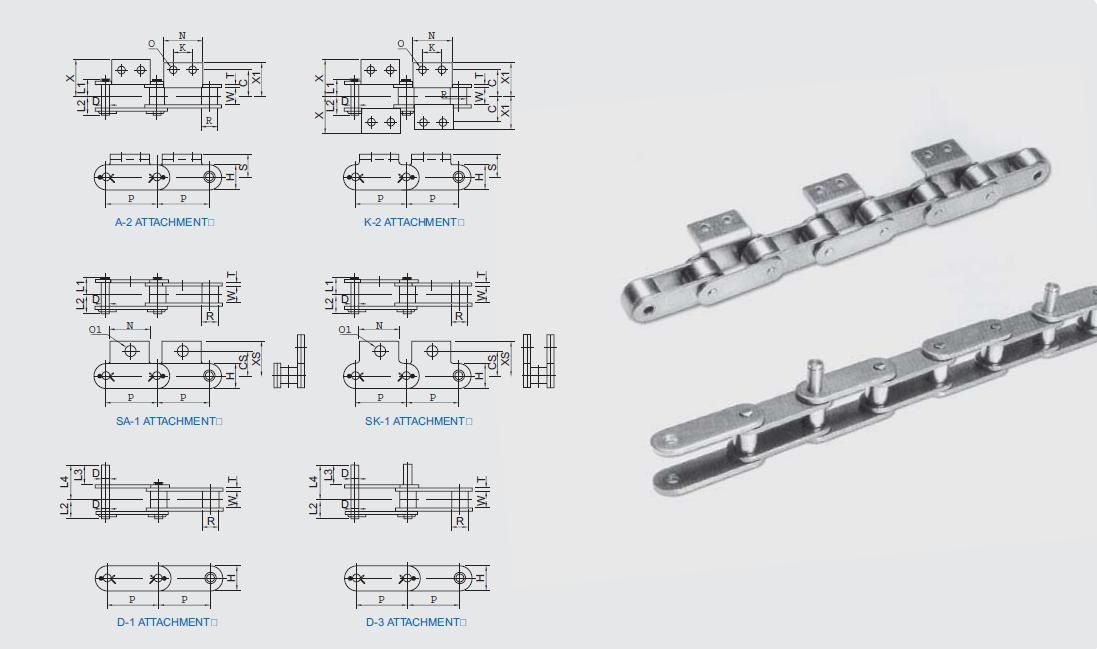

아타치먼트(Attachmant)체인







아타치먼트(Attachmant)체인은

체인에 아타치 먼트를 부착하여 현장에서

여러 가지 용도의 이송용
콘베어 시스템에 사용되고 있습니다.

체인번호
Chain No.
피치
P
내폭
W
로울러경
R

핀Pin
플레이트
Plate
개략중량
(Kg/M)
단위당
링크수
D
L1
L2
H
T
MS 25
6.35
3.18
3.30
2.31
3.80
4.8
6.0
0.75
0.14
480
MS 35
9.525
4.78
5.08
3.59
5.85
6.85
9.0
1.25
0.33
320
MS 40
12.70
7.95
7.94
3.97
8.25
9.95
12.0
1.5
0.64
240
MS 50
15.875
9.53
10.16
5.09
10.3
12.0
15.0
2.0
1.04
192
MS 60
19.05
12.70
11.91
5.96
12.85
14.75
18.1
2.4
1.53
160
MS 80
25.40
15.88
15.88
7.94
16.25
19.25
24.1
3.2
2.66
120
MS 100
31.75
19.05
19.05
9.54
19.75
22.85
30.1
4.0
3.99
96
MS 120
38.10
25.40
22.23
11.11
24.90
28.90
36.2
4.8
5.93
80
MS 140
44.45
25.40
25.40
12.71
26.90
31.70
42.2
5.6
7.49
68
MS 160
50.80
31.75
28.58
14.29
31.85
36.85
48.2
6.4
10.10
60



체인번호
Chain No.
아타치멘트 Attachment
Attachment 1 개당 부가중량(Kg)
C
CS
N
O
S
X
X1
XS
L3
L4
A.SA
K.SK
D-3.1
MS 25
7.15
7.95
5.6
3.4
4.75
10.7
10.7
11.65
-
-
0.0003
0.0006
-
MS 35
9.5
9.5
7.9
3.4
6.35
14.3
14.3
14.55
9.5
14.6
0.0008
0.0016
0.001
MS 40
12.7
12.7
9.5
3.6
8.0
17.8
17.8
17.40
9.5
16.8
0.002
0.004
0.001
MS 50
15.9
15.9
12.7
5.2
10.3
23.4
23.4
23.05
11.9
21.0
0.003
0.006
0.002
MS 60
19.05
18.3
15.9
5.2
11.9
28.2
28.2
26.85
14.3
25.85
0.007
0.014
0.003
MS 80
25.4
24.6
19.1
6.8
15.9
36.6
36.6
35.45
19.1
33.9
0.013
0.026
0.007
MS 100
31.75
31.8
25.4
8.7
19.8
44.9
44.9
44.00
23.8
41.85
0.026
0.052
0.012
MS 120
38.1
36.5
28.6
10.3
23.0
55.8
51.2
52.85
28.6
51.4
0.044
0.088
0.020
MS140
44.5
44.5
34.9
11.9
28.6
63.1
58.0
63.5
33.3
57.5
0.071
0.142
0.030
MS 160
50.8
50.8
38.1
14.3
31.8
71.8
66.0
70.10
38.1
67.4
0.097
0.192
0.045





더블피치 아다치체인



체인번호
Chain No.
피치
P
내폭
W
로울러외경
핀Pin
플레이트
Plate
개략중량
 단위당
링크수
S-ROLLER
R1
R-ROLLER
R2
D
L1
L2
H
T
S-ROLLER
(Kg/M)
R-ROLLER
(Kg/M)
MS 2040
25.40
7.95
7.94
15.88
3.97
8.25
9.95
12.0
1.5
0.51
0.87
120
MS 2050
31.75
9.53
10.16
19.05
5.09
10.30
12.0
15.0
2.0
0.84
1.30
96
MS 2060
38.10
12.70
11.91
22.23
5.96
14.55
16.55
18.0
3.2
1.51
2.19
80
MS 2080
50.80
15.88
15.88
28.58
7.94
18.30
20.9
24.0
4.0
2.66
3.68
60
MS 2100
63.50
19.05
19.05
39.67
9.54
21.80
24.5
30.0
4.8
3.99
6.30
48
MS 2120
76.20
25.40
22.23
44.45
11.11
26.95
30.55
34.2
5.6
5.35
8.60
40
MS 2160
101.6
31.75
28.58
57.15
14.29
33.95
38.45
48.0
7.2
9.42
13.70
30
체인번호
Chain No.
아타치멘트 Attachment
Attachment 1 개당 부가중량(Kg)
C
CS
N
K
O
O1
S
X
X1
XS
L3
L4
A.SA
K.SK
D-3.1
MS 2040
12.7
11.1
19.1
9.5
3.6
5.2
9.1
19.3
17.6
19.8
9.5
16.85
0.003
0.006
0.001
MS 2050
15.9
14.3
23.8
11.9
5.2
6.8
11.1
24.2
22.0
24.6
11.9
21.15
0.006
0.012
0.002
MS 2060
21.45
17.5
28.6
14.3
5.2
8.7
14.7
31.5
28.2
30.6
14.3
27.50
0.017
0.034
0.003
MS 2080
27.8
22.2
38.1
19.1
6.8
10.3
19.1
40.7
36.6
40.5
19.1
35.58
0.037
0.074
0.007
MS 2100
33.35
28.6
47.6
23.8
8.7
14.3
23.4
49.9
44.9
50.4
23.8
43.58
0.067
0.134
0.012
MS 2120
39.7
33.3
57.2
28.6
14.0
16.0
27.8
60.7
54.4
59.9
-
-
0.100
0.200
-
MS 2160
52.39
44.45
76.2
38.1
16.1
19.5
36.5
79.0
71.0
78.6
-
-
0.240
0.490
-
